iLQR compared with gradient descent#

A finite-horizon control problem can also be solved by treating the input sequence \(u_{0:T-1}\) as free parameters and minimising the rolled-out cost \(J(u)\) with a first-order optimiser such as Adam. This is the shooting or backpropagation-through-time approach.

This notebook compares that approach with iLQR on the same pendulum swing-up as the previous example. iLQR uses the problem’s temporal structure: its Riccati backward pass is a Newton-like step computed in \(O(T)\). It typically needs far fewer iterations than gradient descent and reaches a better optimum.

[1]:

import time as timer

import jax
import jax.numpy as jnp
import jax.random as jr
import matplotlib.pyplot as plt
import optax

from diffilqrax.ilqr import ilqr_solver, ilqr_simulate
from diffilqrax.typs import System, ModelDims, iLQRParams, PendulumParams

jax.config.update("jax_enable_x64", True)

The problem#

The pendulum swing-up from the previous notebook:

[2]:

DT, DAMPING, U_MAX, HORIZON = 0.05, 0.1, 3.0, 100
dims = ModelDims(n=2, m=1, horizon=HORIZON, dt=DT)


def dynamics(t, x, u, theta):
    """Euler step; x = [angle, angular velocity], angle 0 is hanging down"""
    acc = -theta.g / theta.l * jnp.sin(x[0]) - DAMPING * x[1] + u[0] / (theta.m * theta.l**2)
    return x + DT * jnp.stack([x[1], acc])


def cost(t, x, u, theta):
    """Small running cost on angle, velocity and torque, plus a smooth barrier at |u| = U_MAX"""
    barrier = jax.nn.softplus(5.0 * (u - U_MAX)) ** 2 + jax.nn.softplus(5.0 * (-u - U_MAX)) ** 2
    return 0.1 * (1.0 + jnp.cos(x[0])) + 0.01 * x[1] ** 2 + 0.01 * jnp.sum(u**2) + jnp.sum(barrier)


def costf(x, theta):
    """Be upright (angle ±pi) and still at the final time"""
    return 50.0 * (1.0 + jnp.cos(x[0])) + 5.0 * x[1] ** 2


model = System(cost, costf, dynamics, dims)
params = iLQRParams(x0=jnp.array([0.1, 0.0]), theta=PendulumParams(m=1.0, l=1.0, g=9.8))
Us_init = 0.5 * jr.normal(jr.PRNGKey(0), (HORIZON, 1))
time = jnp.arange(HORIZON + 1) * DT

iLQR#

We compile the solver once with jax.jit and then time a second call.

[3]:

solve = jax.jit(lambda p, u: ilqr_solver(model, p, u, max_iter=300))
jax.block_until_ready(solve(params, Us_init))  # compile

start = timer.perf_counter()
(Xs_ilqr, Us_ilqr, _), J_ilqr, cost_log = jax.block_until_ready(solve(params, Us_init))
t_ilqr = timer.perf_counter() - start
iters_ilqr = int(jnp.sum(jnp.diff(cost_log) != 0)) + 1
print(f"iLQR: J = {float(J_ilqr):.4f} in {iters_ilqr} iterations, {t_ilqr*1e3:.0f} ms")

iLQR: J = 17.8970 in 184 iterations, 169 ms

Gradient descent (Adam)#

ilqr_simulate rolls out the dynamics and returns the total cost. It is differentiable with respect to Us, so jax.value_and_grad gives \(\nabla_u J\) by backpropagation through time.

[4]:

def loss(Us):
    return ilqr_simulate(model, Us, params)[1]


optimiser = optax.adam(learning_rate=0.05)


@jax.jit
def adam_step(carry, _):
    Us, state = carry
    J, g = jax.value_and_grad(loss)(Us)
    updates, state = optimiser.update(g, state)
    return (optax.apply_updates(Us, updates), state), J


n_steps = 5000
run = jax.jit(lambda u: jax.lax.scan(adam_step, (u, optimiser.init(u)), None, length=n_steps))
jax.block_until_ready(run(Us_init))  # compile

start = timer.perf_counter()
(Us_gd, _), gd_log = jax.block_until_ready(run(Us_init))
t_gd = timer.perf_counter() - start
(Xs_gd, _), J_gd = ilqr_simulate(model, Us_gd, params)
print(f"Adam: J = {float(J_gd):.4f} after {n_steps} steps, {t_gd*1e3:.0f} ms")

Adam: J = 20.4651 after 5000 steps, 1943 ms

Comparison#

[5]:

fig, axes = plt.subplots(1, 3, figsize=(12, 3.2), layout="constrained")
axes[0].loglog(jnp.arange(1, n_steps + 1), gd_log, c="C3", label="Adam")
axes[0].loglog(jnp.arange(1, iters_ilqr + 1), cost_log[:iters_ilqr], "o-", c="C0", ms=3, label="iLQR")
axes[0].set(xlabel="iteration", ylabel="cost J")
axes[0].legend()
axes[1].plot(time, Xs_gd[:, 0], c="C3", label="Adam")
axes[1].plot(time, Xs_ilqr[:, 0], c="C0", label="iLQR")
for s in (-1, 1):
    axes[1].axhline(s * jnp.pi, ls=":", c="k")
axes[1].set(xlabel="time (s)", ylabel="angle (rad)")
axes[2].plot(time[:-1], Us_gd[:, 0], c="C3")
axes[2].plot(time[:-1], Us_ilqr[:, 0], c="C0")
axes[2].set(xlabel="time (s)", ylabel="torque");

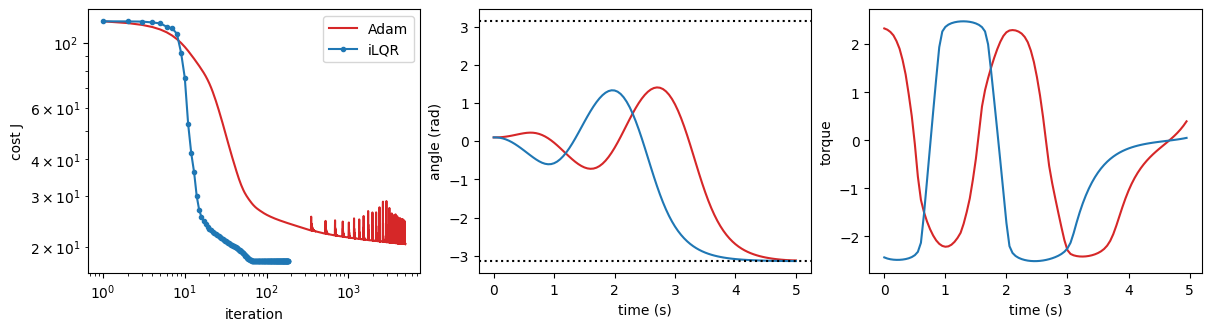

../_images/examples_ilqr_vs_backpropagation_9_0.png

[6]:

print(f"{'':6s}{'final cost':>12s}{'iterations':>12s}{'time (ms)':>12s}")
print(f"{'iLQR':6s}{float(J_ilqr):12.4f}{iters_ilqr:12d}{t_ilqr*1e3:12.0f}")
print(f"{'Adam':6s}{float(J_gd):12.4f}{n_steps:12d}{t_gd*1e3:12.0f}")

        final cost  iterations   time (ms)
iLQR       17.8970         184         169
Adam       20.4651        5000        1943

In this run, Adam also finds a swing-up, but it is a different and more expensive one. It stalls at a higher cost and oscillates with the fixed learning rate. iLQR reaches a lower cost in far fewer iterations and less wall time. Each iLQR iteration costs more than an Adam step, because it needs a backward pass, a rollout and a line search, but each step uses curvature, whereas Adam sees only the poorly conditioned gradient of a long rollout.

How to adapt#

Your own problem: both methods take the same System, so swap in your dynamics and cost to compare them on your task.
Tuning the baseline: the Adam learning rate and step count are the key knobs. Too large a learning rate diverges on long horizons.
When gradient descent is preferable: with non-smooth costs, or when \(u\) comes from a policy network rather than a free sequence. Even then, iLQR solutions make good targets or warm starts.
